Virtual Displacement Mapping Techniques

Overview

Final project for CSCI 570 (3-D Rendering and Graphics) at USC. Our team of four compared performance of multiple virtual displacement mapping techniques against true displacement mapping in Unity, profiling each approach and evaluating visual quality.

Duties

• Implemented and compared virtual displacement mapping techniques in HLSL
• Profiled techniques with the Unity profiler against true displacement mapping
• Co-authored analysis of performance, realism, and trade-offs per technique

Gallery

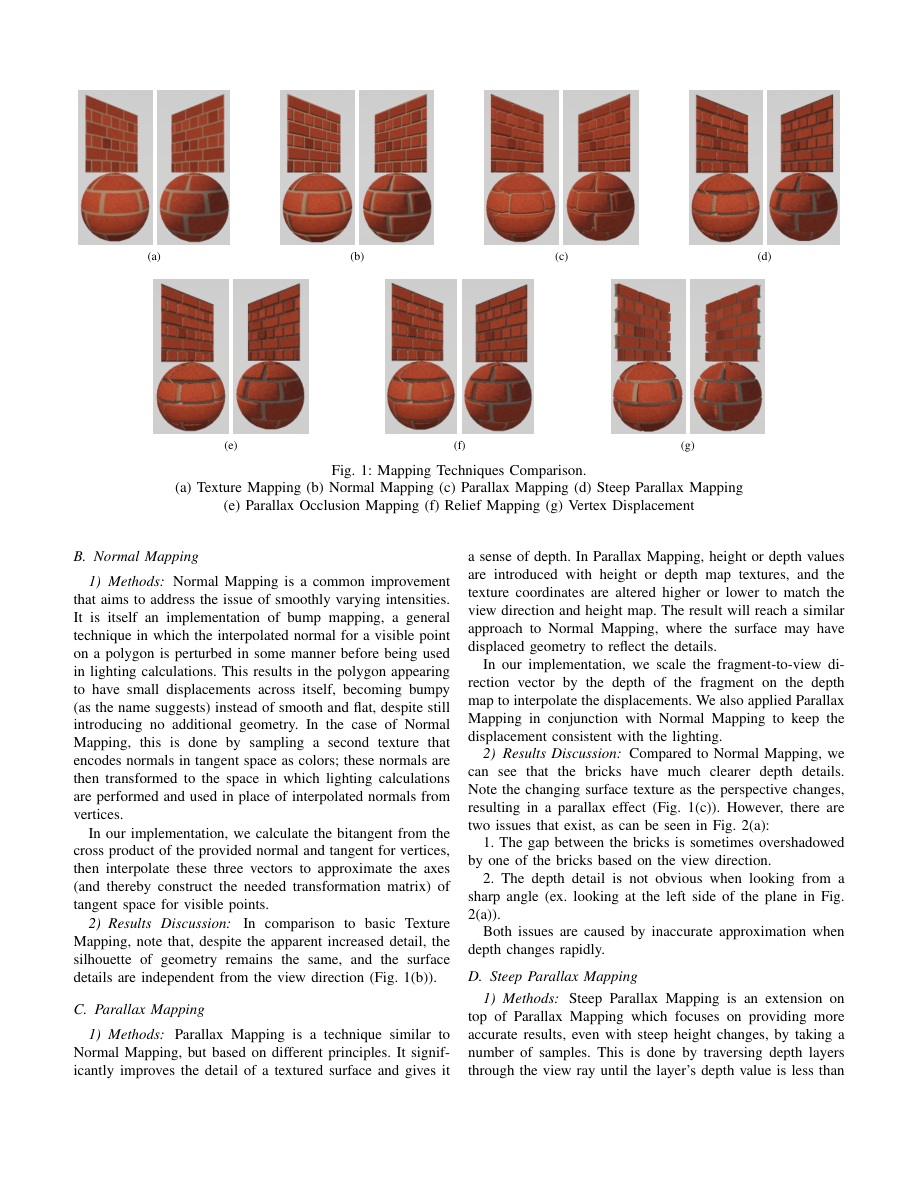

Report visual comparison across mapping methods (excerpt)

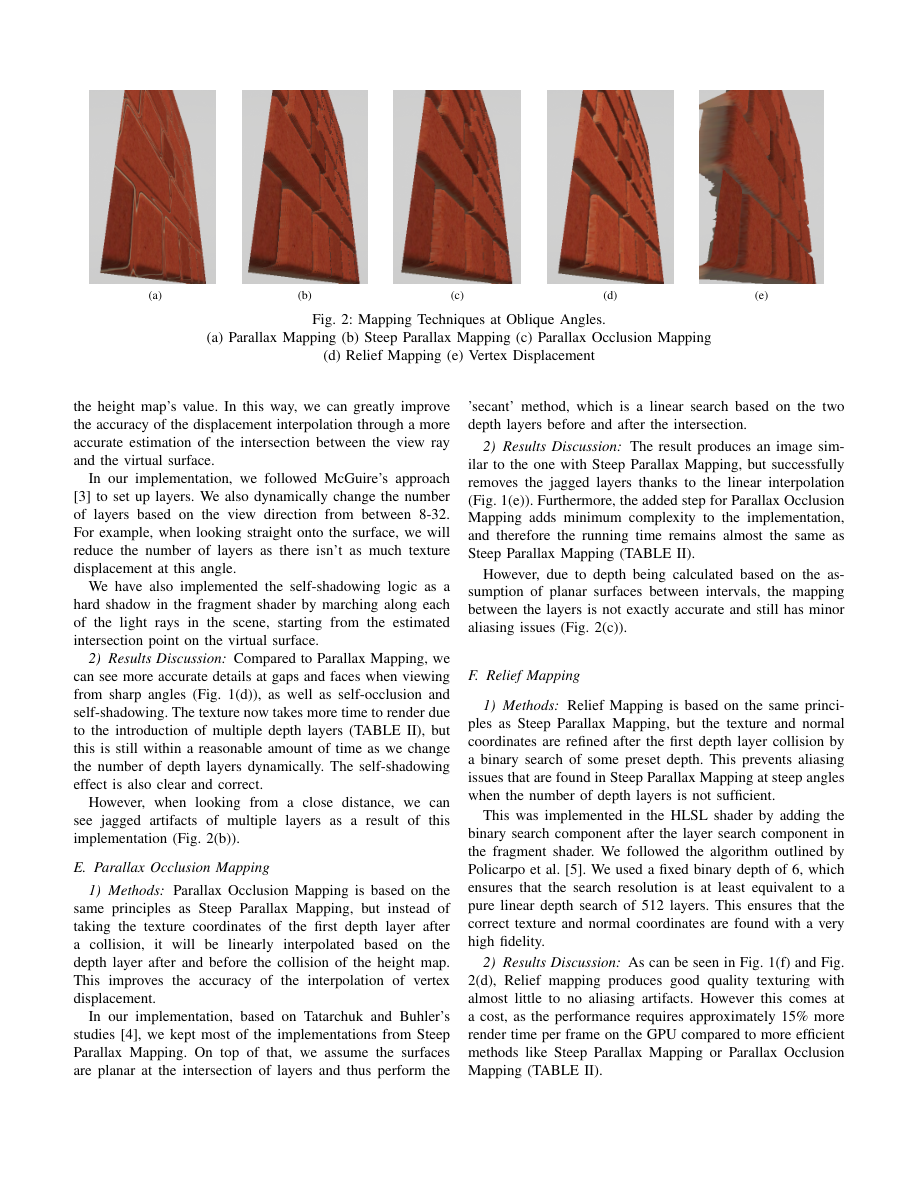

Oblique-angle comparison and method discussion (excerpt)

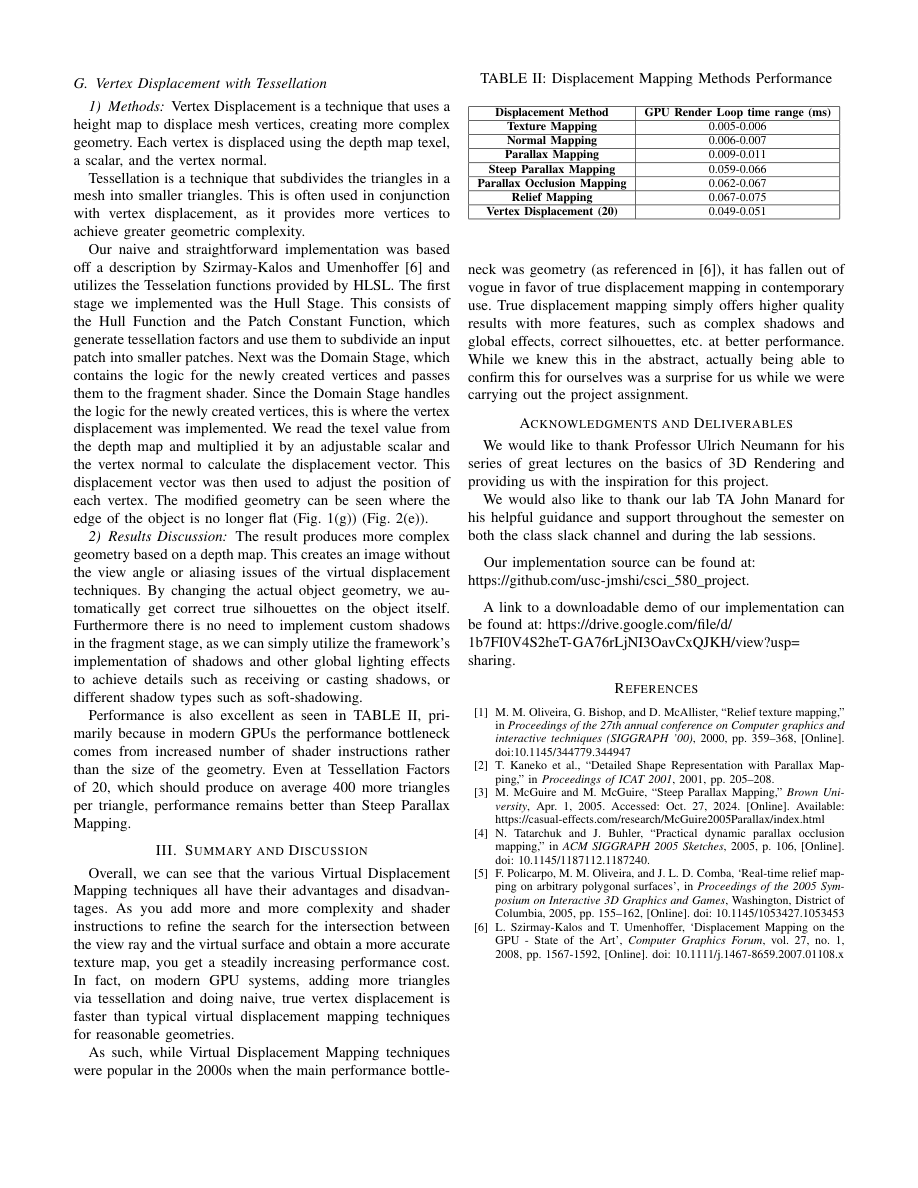

Performance table and summary conclusions (excerpt)

Key Figures

• Texture Mapping: 0.005-0.006 ms GPU render loop time
• Normal Mapping: 0.006-0.007 ms
• Parallax Mapping: 0.009-0.011 ms
• Steep Parallax Mapping: 0.059-0.066 ms
• Parallax Occlusion Mapping: 0.062-0.067 ms
• Relief Mapping: 0.067-0.075 ms
• Vertex Displacement (tessellation factor 20): 0.049-0.051 ms

Process

We implemented shaders in Unity/HLSL, measured performance systematically, and documented pros, cons, and depth realism for each technique in a report that received the highest grade in the course. The key performance result was that true vertex displacement with tessellation outperformed several advanced virtual displacement variants while also producing higher-fidelity silhouettes and lighting behavior.

Artifacts: Report PDF · GitHub repository
